HYDRA-1000 Series

Measuring device for initial response to
the hazardous chemicals spill

Hydra-1000G is a gas analyzer
made of portable and measures harmful chemicals in the air
using a FTIR(Fourier Transform Infrared) mensuration.

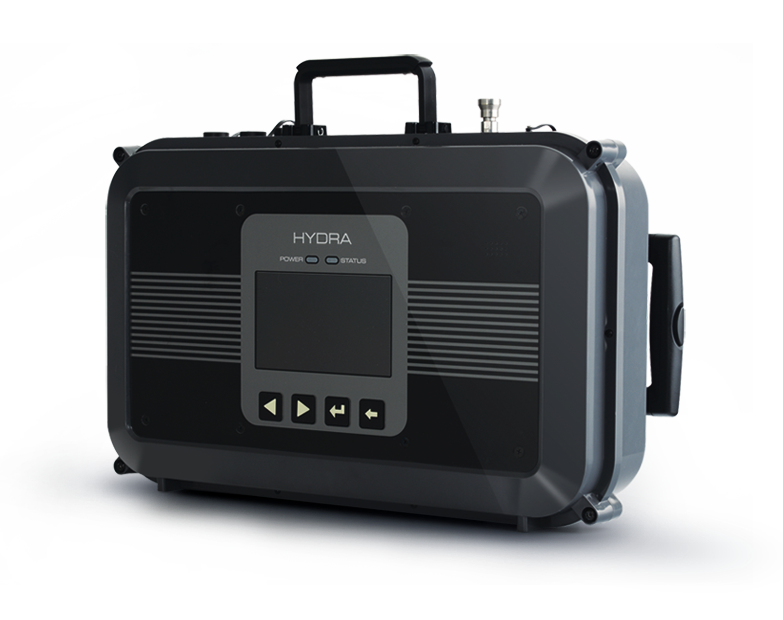

More than 40 kinds of harmful GAS can be measured HYDRA-1000G Portable FTIR Multi Gas Analyzer

Gas measuring equipment

Available to Simultaneous measurement of single/multiple harmful gas.
Contain DB to chemicals accident response substance of Ministry of
Environment, Available up to 12 hours, Remote measurement and management

  • 01Hydra-1000G is a gas analyzer made of portable and measures
    harmful chemicals in the air using a FTIR(Fourier Transform
    Infrared) mensuration.
  • 02Hydra-1000 LG is designed to have high reliability and durability for use in
    danger area so that measures more than 40 types of noxious gases.
  • 03Simple structure that consist of gold-coated measuring cell,
    suction pump and all measurement control section.
  • 04Noxious gases that can’t be measured by using FTIR are measured by
    using a multi-composite measurement with electrochemical gas sensor.
  • 05In case of using internal batteries , measurement can be made up
    maximum 5 hours. In case of using carriers containd supplementary
    batteries, measurement can be made up maximum 12 hours.
  • 06Built-in GPS and LTE enable remote management about measured
    location and result.

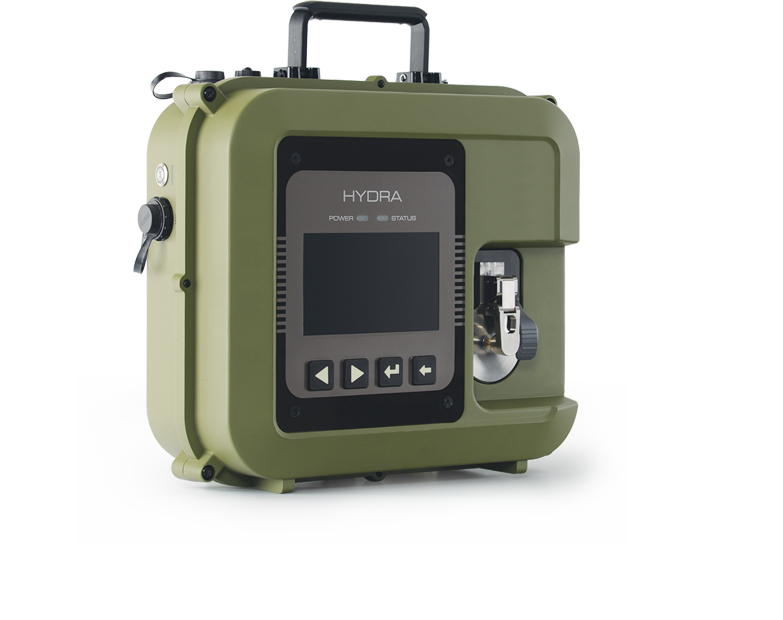

Discernable for 20 type of harmful substances of a liquid state and 10 type of them in a solid state. HYDRA-1000LS Portable FTIR Multi Gas Analyzer

liquid/solid measuring equipment

Measure more than 45 liquid/solid hazardous chemicals using ATR
Available up to 5hours, Remote management

  • 01Hydra-1000 LS is a gas analyzer made of portable and measures
    harmful chemicals in a solid and liquid stateby using a FTIR
    (Fourier Transform Infrared) mensuration.
  • 02Hydra-1000 LG is designed to have high reliability and durability for
    use in danger area so that measures more than 45 types of noxious substances.
  • 03Simple structure that consist of ZnSe and ATR
    that contained diamond prism.
  • 04Noxious gases that can’t be measured by using FTIR are measured
    by using a multi-composite measurement with electrochemical sensor.
  • 05In case of using internal batteries, measurement
    can be made up maximum 5 hours.
  • 06Built-in GPS and LTE enable remote management about measured location and result.

Specification

HYDRA-1000G HYDRA-1000G
HYDRA-1000G Specification HYDRA-1000LS
· More than 400 gas DB
· DB can be added by user request
Measurement item · More than 45 hazardous chemicals
· DB can be added by user request
· FTIR + EC sensor Measurement method · ATR(ZeSe)
· Within 1~10 min Measurement time · Within 1 min
· -10 ~ 50degrees Measurement temperature · -10 ~ 50degrees
· Double of 0 ~ IDLH reference value Measurement range · Qualitative analysis of hazardous chemicals
· Standard: 5 hours / With battery pack: 12 hours Usage time · Standard: 5 hours
· 1cm-1 Spectrometer resolution · 4cm-1
· 500 ~ 7,500cm-1 Spectrometer measurement range · 500 ~ 7,500cm-1
· White Cell Structure of measurement cell · N/A
· Within 2% (24 hours) (Function) drift · N/A
· Within 2% (IDLH standard) (Function) repeatability · N/A
· Within 2% (IDLH standard) (Function) linearity · N/A
· 7 inches LCD screen User interface · 7 inches LCD screen
· USB, LAN External output · USB, LAN
· 3 mode (Danger / Warning / Safe) Alarm mode · 3 mode (Danger / Warning / Safe)
· DC 29.4V, 5A Power · DC 29.4V, 5A
· Built-in GPS Other · Built-in GPS
· 590(width)
*400(height)
*150(depth)
· Body 18kg /
less than 25kg
with carrier unit
Size (unit : mm) · 450(width)
*410(height)
*177(depth)
· less than 15kg
